Prerequisites:

• Java 17 or later
• Download the .jar file

To set up SAML, take the following steps:

1. <install saml-artifacts>
2. install sp-saml-tools
   • Place sp-saml-tools.jar in {edge-install-dir}/bin
3. Append local.properties-template to local.properties
   • cd {edge-install-dir}/conf
   • cat local.properties-template >> local.properties
4. Edit local.properties
   • Comment out (or configure) saml.groupMap entries
   • Set keystorePath to edgesp.p12 (or something else, just substitute that in the generate and import steps)
5. Generate SP metadata
   • java -jar ../bin/sp-saml-tools.jar generate-sp –out=/tmp/Edgecoreteam.xml –properties-file=local.properties –acs-url=http://{your-host-and-port}/–keystore=edgesp.p12 –entity-id=http://{your-host-and-port}/
6. Configure Entra

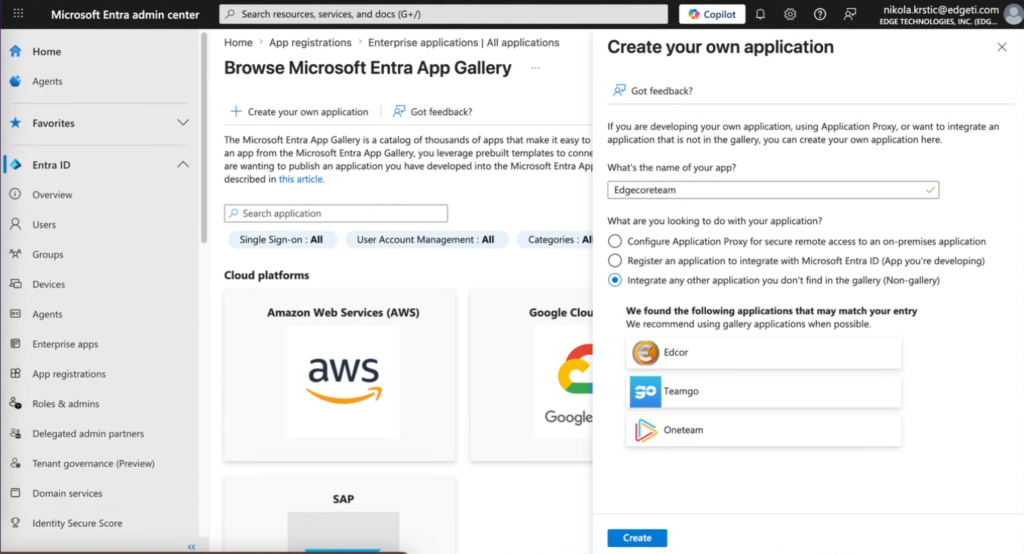

   • Click Enterprise apps > +New Application > + Create your own application.

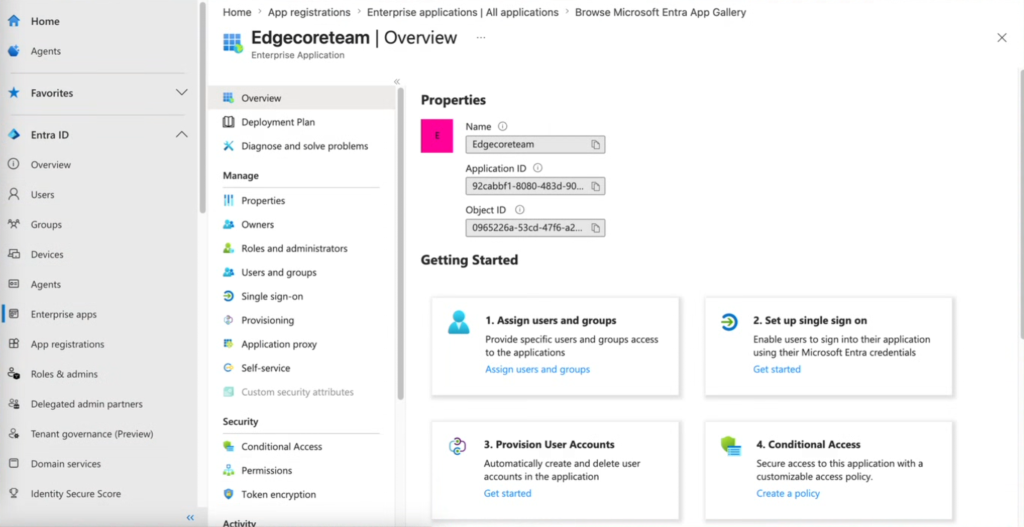

   • Click Set up single sign on.

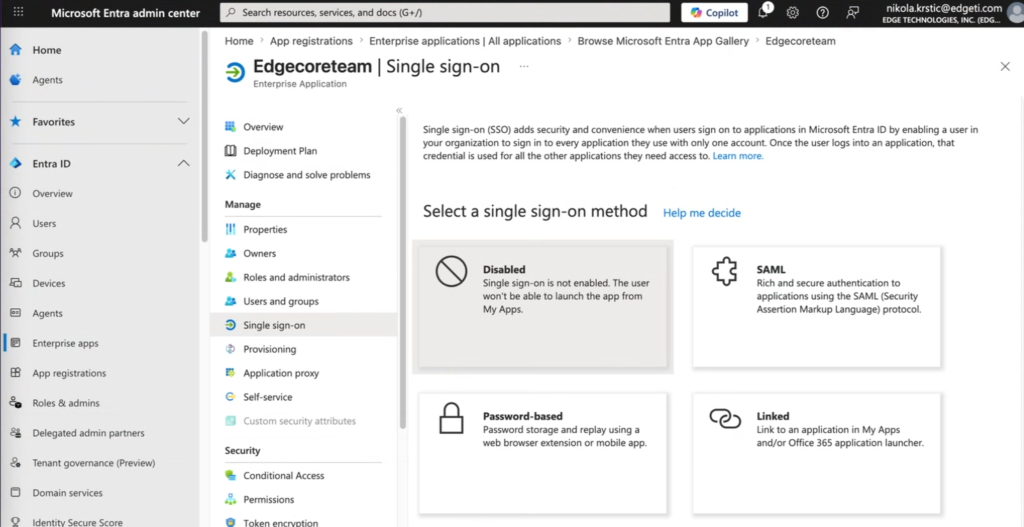

   • In Select a single sign-on method, click SAML.

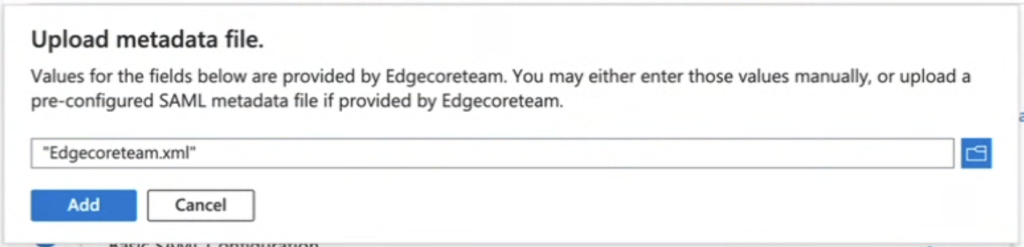

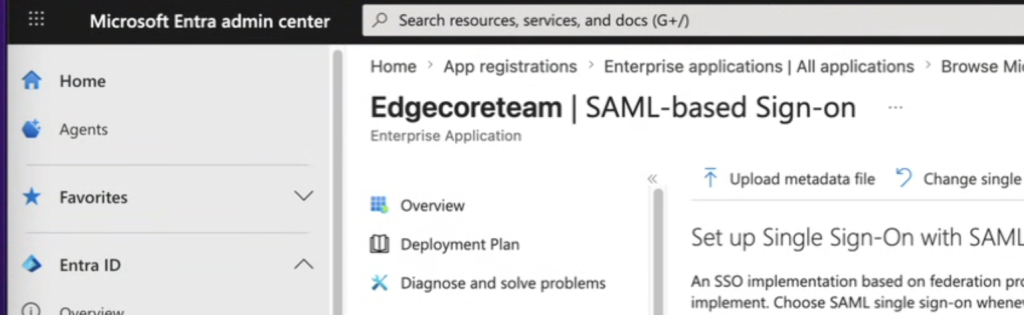

   • Click Upload metadata file.


   • Click Add.

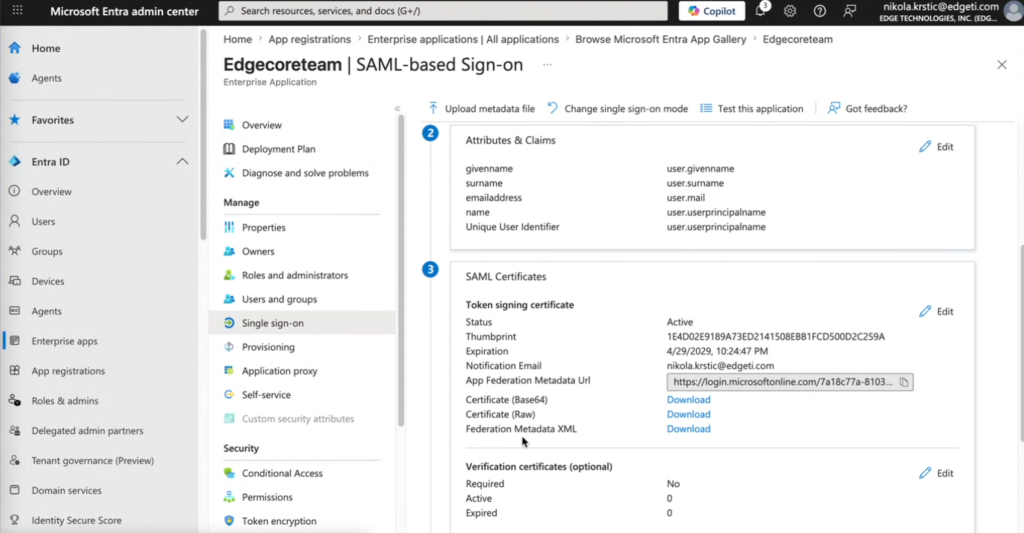

   • Go to Enterprise apps > Your app name (Edgecoreteam in our case) > Single sign-on and copy App Federation Metadata Url


7. Import the IdP metadata.

   java -jar ../bin/sp-saml-tools.jar import-idp --properties-file=local.properties --keystore=edgesp.p12 --metadata="{url-you-copied}"

8. Restart edgeCore.
